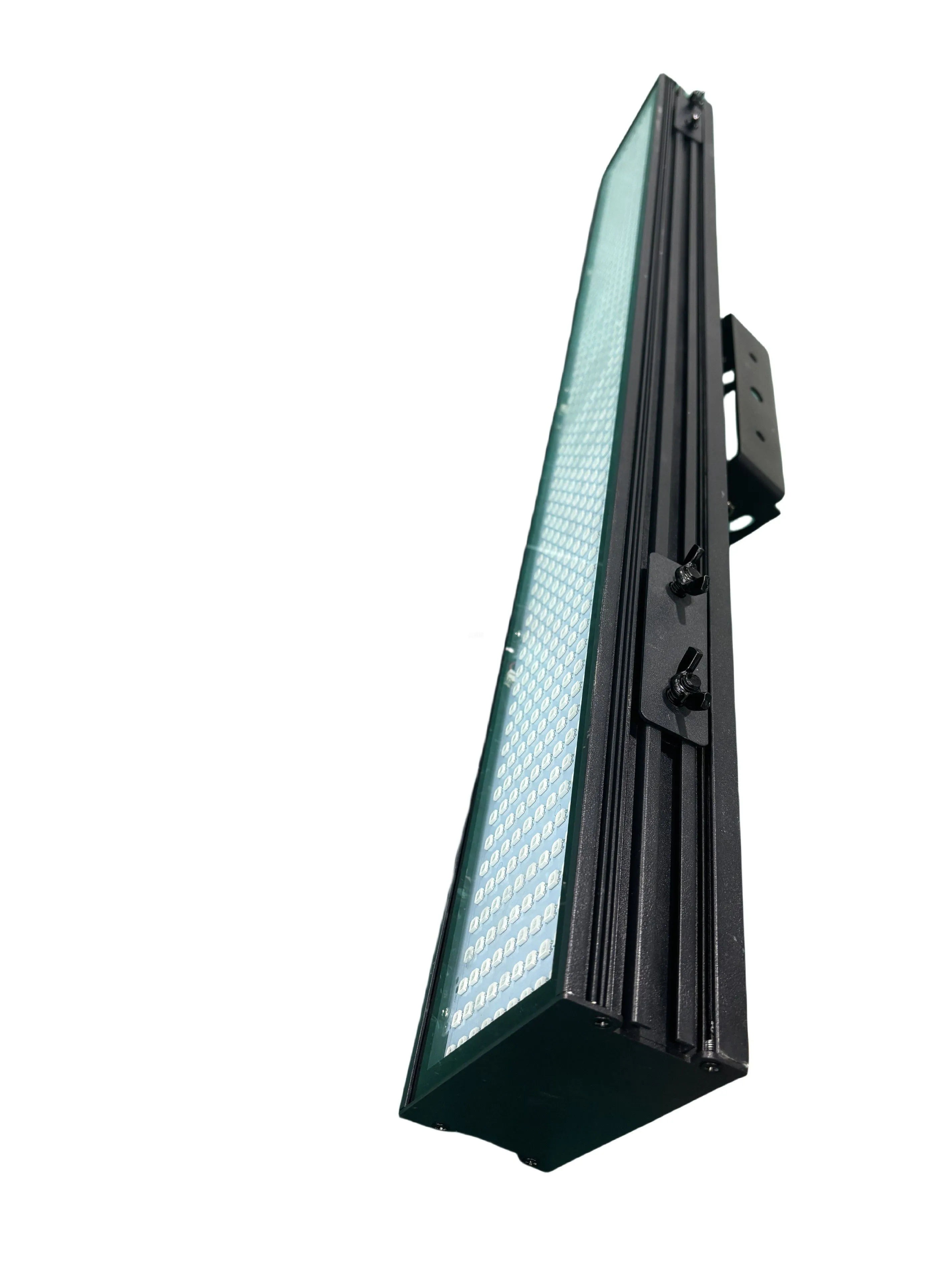

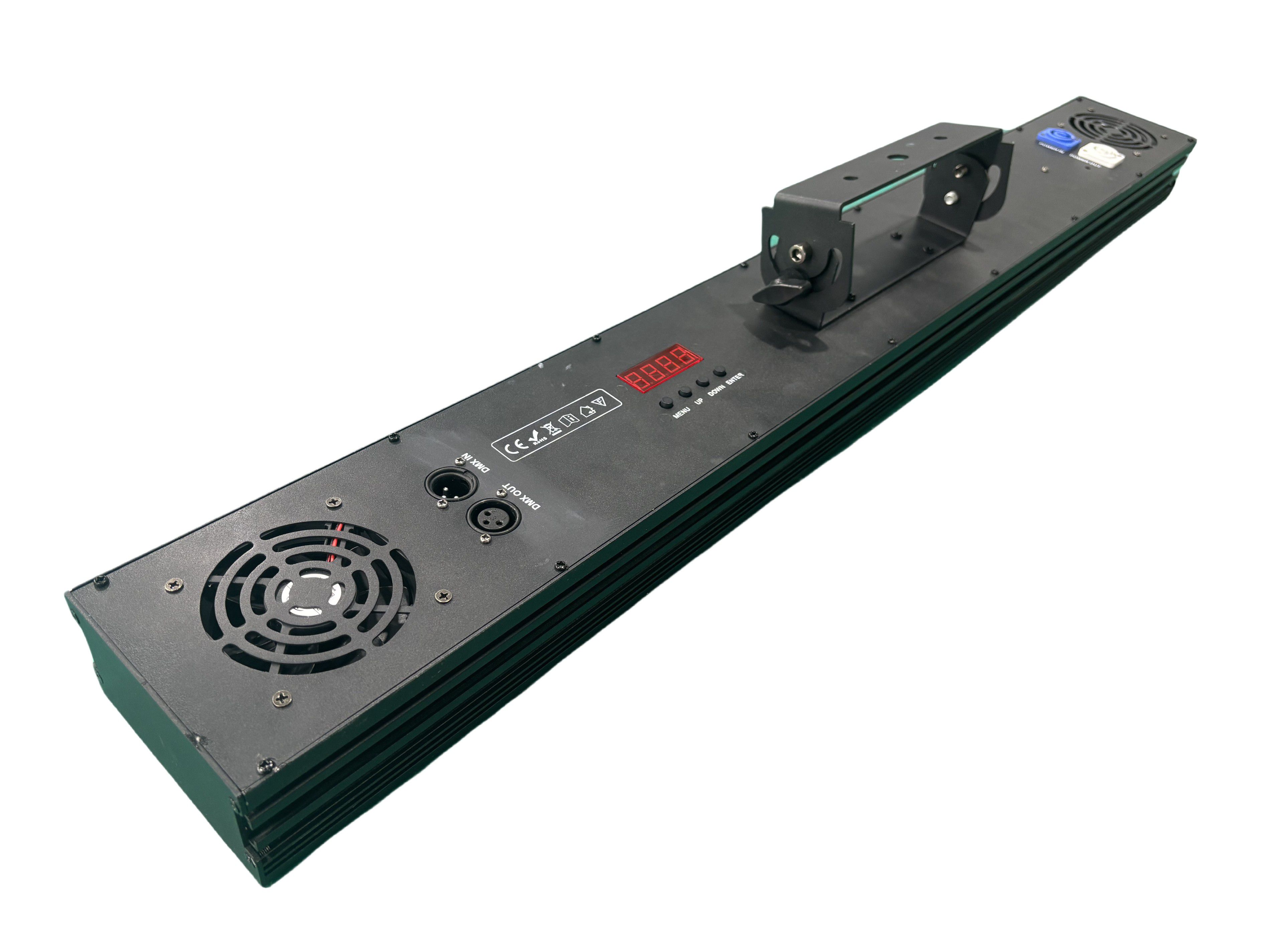

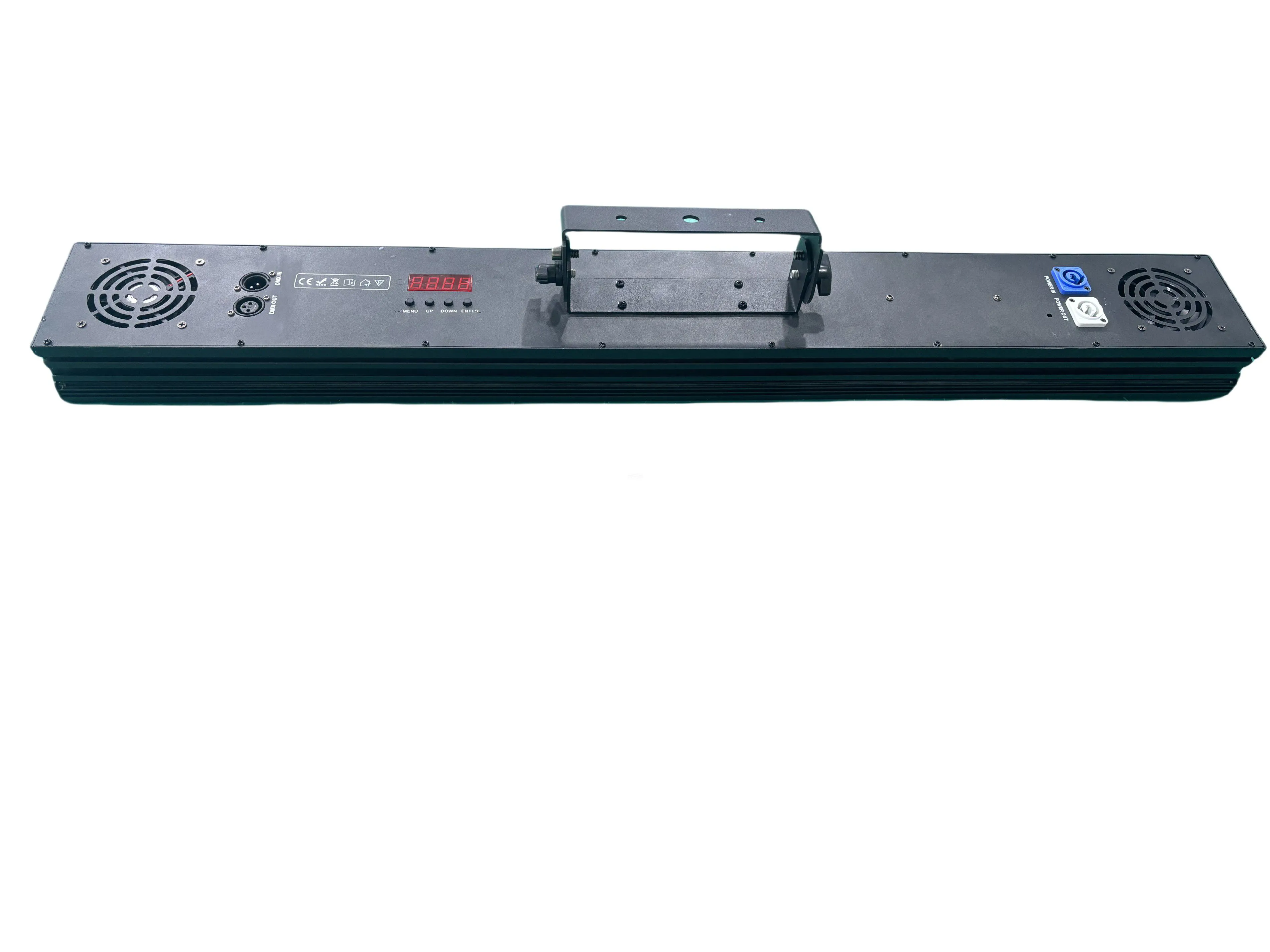

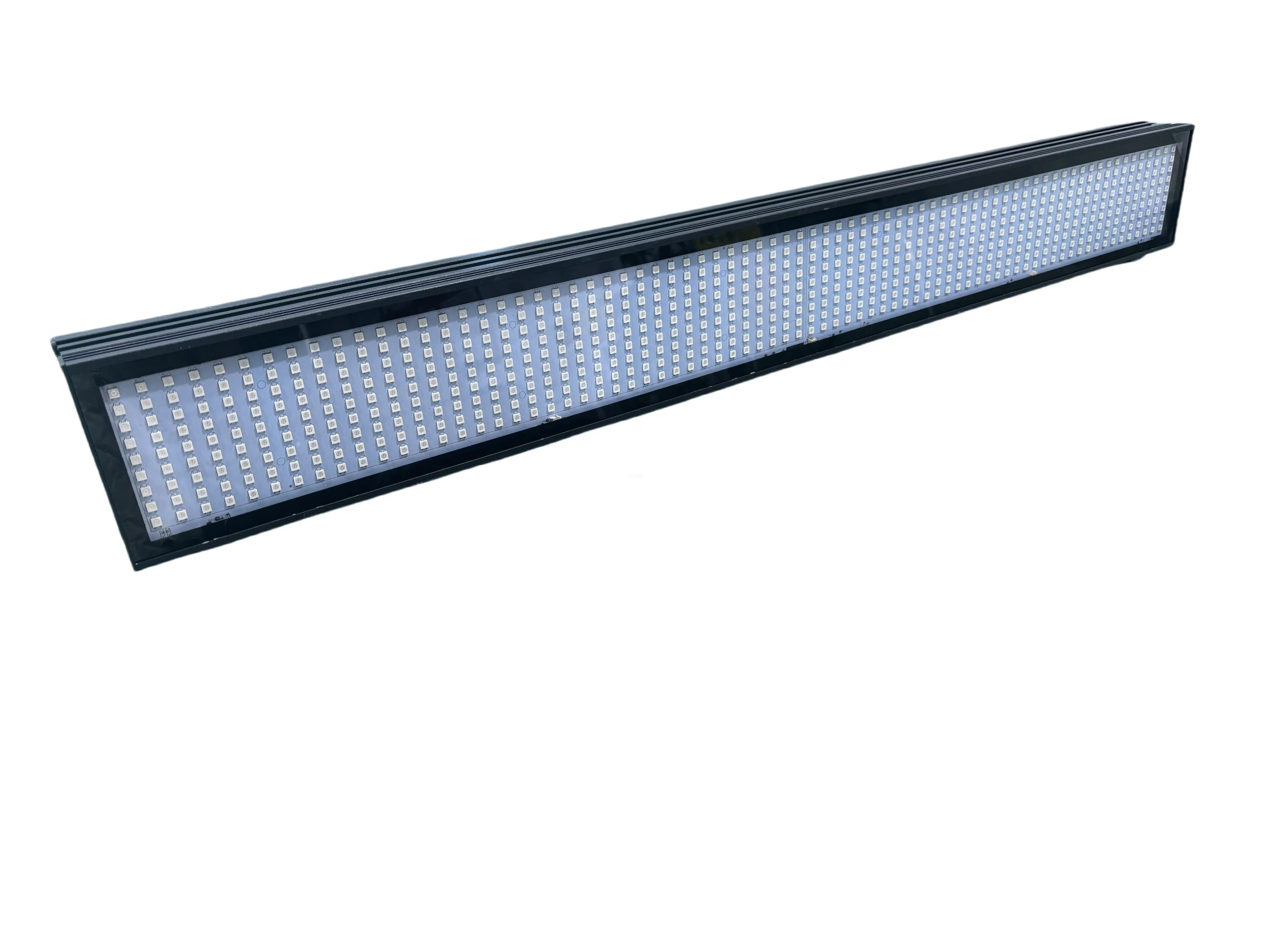

666 Line Pixel Strobe
MODEL NO: LMX-EL666
APP: Events, Concert, Party

Technical Specification


Input voltageAC100~240V 50/60 HZ
Rated power180 W
Light source666x5050 RGBW high-brightness effect
Dimmer32bit 0~ 100% Linear dimming
Strobe1 ~ 30 HZ
Control modeDMX512, AUTO, master-slave, with RDM function
Channel3CH & 8CH
Control interfaceDMX512 signal interface (3-core)
Temperature controlover-temperature protection function
Working temperature-30° ~50°
Enclosure and protection levelIP20
Materialhigh-strength die-cast aluminum alloy


Packing Details


Product size98.5x14.5x12 cm
Net weight5.1Kg
Inner packing dimension105x19x20 cm, 6.6kg (1in1)
Master package107x40x23 cm, 13.85kg (2in1)
