Technical Parameter
| Voltage | AC 110-220V |
| Power | 300W |
| Laser Color | RGB |
| Laser Power | 10W |
| Laser Light Source | R3W, G3W, B4W |
| Modulation signal | TTL modulation (analog modulation) |
| Scanning System | 30KPPS |
| Scanning Angle | ±20° |
| Stepper Motor | two-phase 57 motors |
| Horizontal/Vertical | 540/270 degree |
| LED dyeing configuration | 3 layers Madrix strip |
| Control Mode | DMX512, Voice control, self-propelled, computer ILDA interface, Ethernet Art Net |
| Channel Mode | 20/25 channels |
| Cooling System | Fan force system |

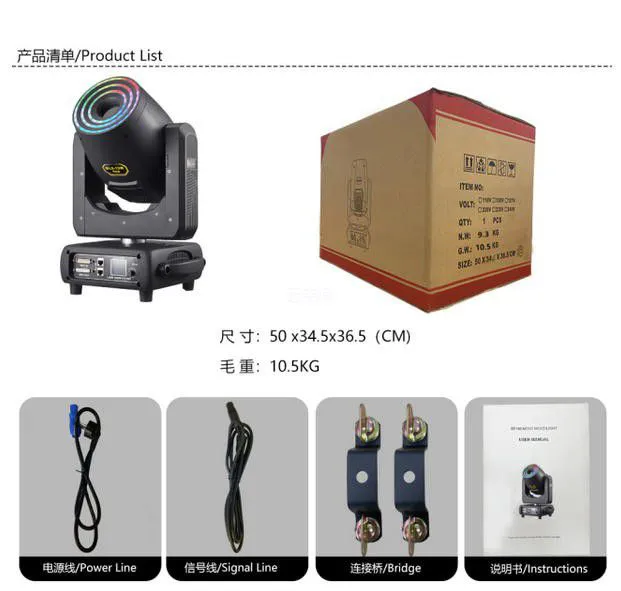

| Dimension | Light: 29x24x45cm, Packing: 50x35x37cm |
| Weight | N.W: 10KG, G.W: 12KG |
Basic Functions
DMX special effects: single pattern mode, with functions such as pen breakage, flicker, rotation, movement,
scrolling, segmentation, gradient drawing, color change, and resizing.
Function: Can be controlled by laser software such as pangolin QSFB3/FB4 or Phoenix.The ILDA
control adopts an automatic electronic transfer switch, which has scanning system
error protection and laser shutdown protection.
Instructions for use: The ambient temperature should be controlled between 0~35 ℃. A dry and dust-free
environment can reduce laser power attenuation and extend the lifespan of the lamp
Suitable venues: nightclubs, bars, nightclubs, concerts, advertising promotions, etc
