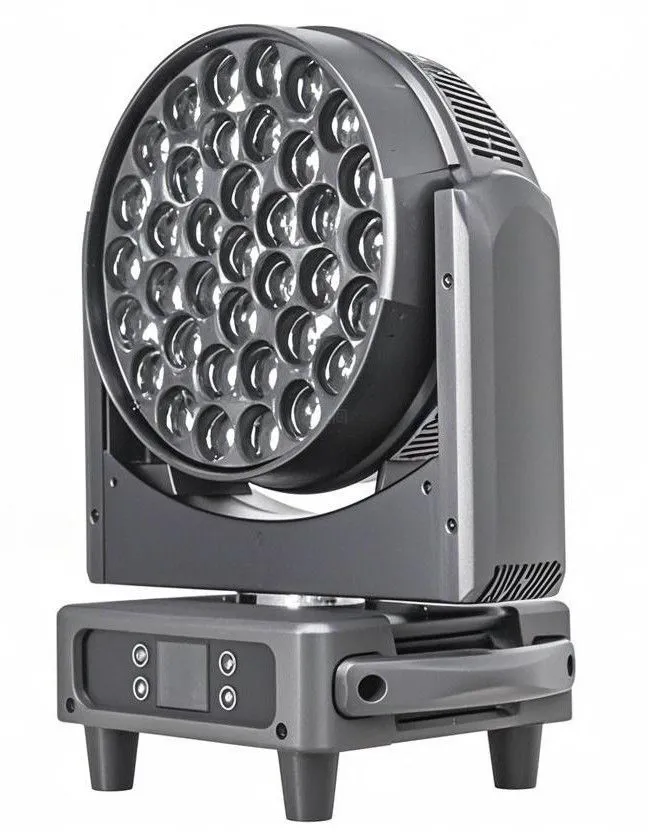

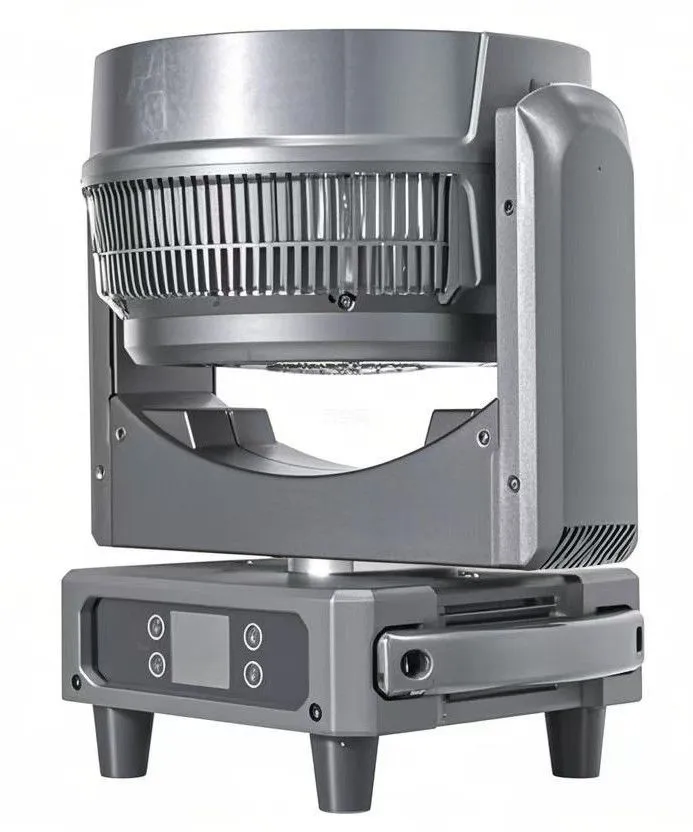

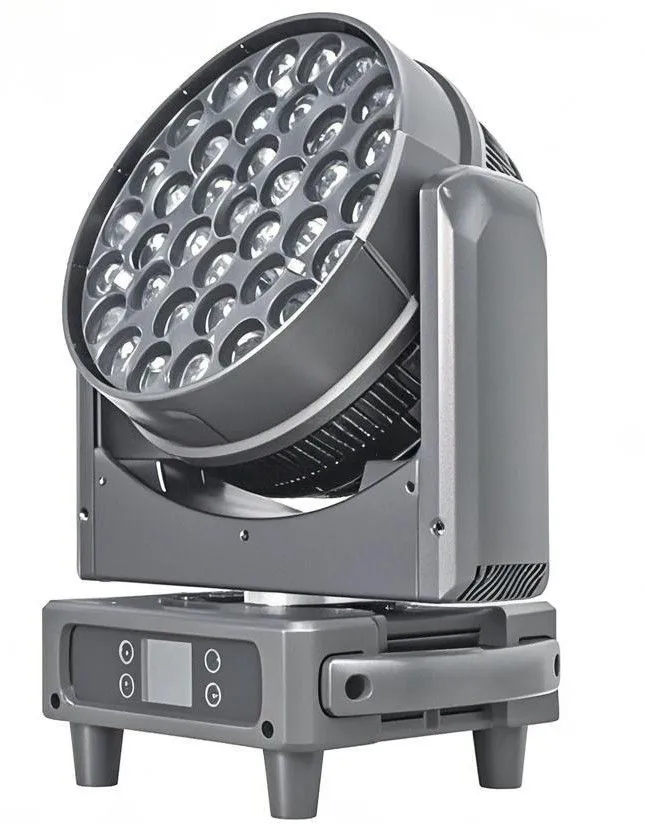

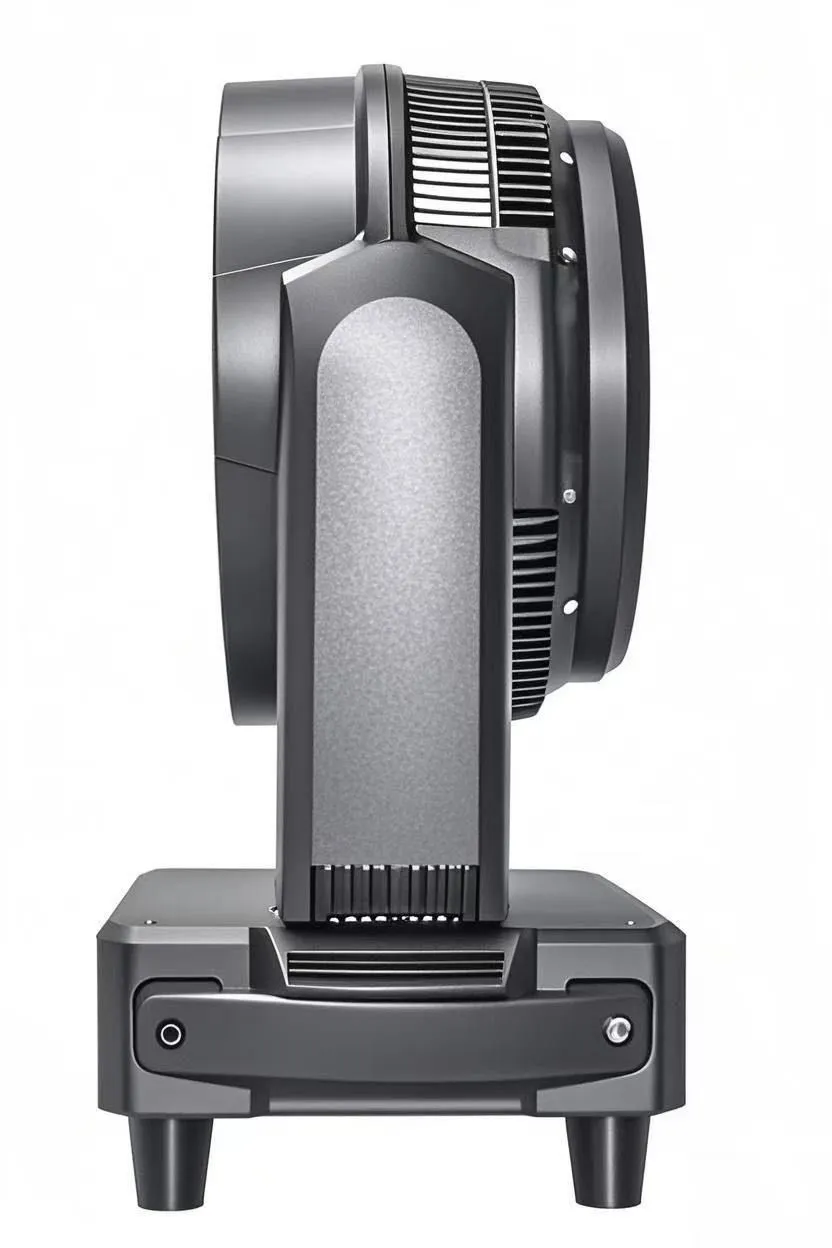

B-Eye 3715
MODEL NO: LMX-W3715
APP: Events, Concert, Party

Technicial Parameters


Voltage
110~240V 50/60Hz
Power
500W
Light Source
LED 37X15W RGBW
Color Temperature
6000K
Zoom Range
5--50°
Pan Angle
540°  16 bit fine
Tilt Angle270°  16 bit fine
Dimmer
0%~100% dimming stop/strobe effect with adjustable speed, dual channel with instantaneous power-off function for color temperature setting
Strobe
1~25 flashes/sec
Control
Control channels：10/15/21/25/37/37,  Upgrade: Upgrade via DMX/USB connection
Structure4 touch buttons selection menu, Display： LED 2.4G color screen, Data in/out: 3-pin and 5-pin XLR, Power outlets: straight outlet, power connector input, power connector input/output. Protectionon Rating： IP20
Key Features
Electronic linear zoom system. It integrates powerful beam and dyeing functions with excellent color macro effect. CTO: 2500K-8000K. Outstanding strobe effect with variable speed 2 fixed folding hooks for 50mm truss with keyhole reserved for 70mm truss for removable hooks. Maximum number of connections: 11 units at 230V and 50Hz, 5 units at 120V and 60Hz. Suitable for stages, theatres, TV studios and dance halls


Packing Details


Products Dimensions
369x292x395 mm
Packing Size470x330x590mm, 17kg( carton include, one unit per carton)
Flycase Package750x440x700mm, 65kg( flycase include, 2 in1)
